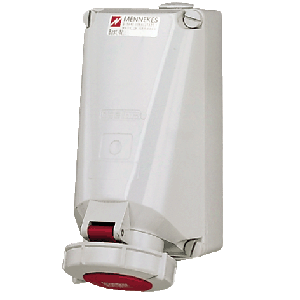

Mennekes Wall mounted receptacle 5515
Product Name:Wall mounted receptacle
Part No.:5515.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
for through wiring.
with fixing points for terminal strip part no. 40113.

Mennekes Wall mounted receptacle 5513
Product Name:Wall mounted receptacle
Part No.:5513.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
for through wiring.
with fixing points for terminal strip part no. 40113.

Mennekes Wall mounted receptacle 5516
Product Name:Wall mounted receptacle
Part No.:5516.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
for through wiring.
with fixing points for terminal strip part no. 40113.

Mennekes Wall mounted receptacle 5512
Product Name:Wall mounted receptacle
Part No.:5512.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
for through wiring.
with fixing points for terminal strip part no. 40113.

Mennekes Wall mounted receptacle 5514
Product Name:Wall mounted receptacle
Part No.:5514.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
for through wiring.
with fixing points for terminal strip part no. 40113.

Mennekes Receptacle 21075
Product Name:Receptacle
Part No.:21075.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.

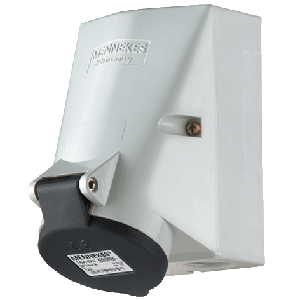

Mennekes Receptacle 22932
Product Name:Receptacle
Part No.:22932.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.

Mennekes Receptacles SoftCONTACT 23964
Product Name:Receptacles SoftCONTACT
Part No.:23964.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.

Mennekes Receptacle 21512
Product Name:Receptacles
Part No.:21512.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
with 4 external fixing holes.
one cable entry at top, one blind cable entry (can be cut out) at bottom.

Mennekes Receptacle 22291
Product Name:Receptacles
Part No.:22291.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
with 4 external fixing holes.
one cable entry at top, one blind cable entry (can be cut out) at bottom.

Mennekes Receptacle 21371
Product Name:Receptacles
Part No.:21371.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
with 4 external fixing holes.
one cable entry at top, one blind cable entry (can be cut out) at bottom.

Mennekes Receptacle 21360
Product Name:Receptacles
Part No.:21360.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
with 4 external fixing holes.
one cable entry at top, one blind cable entry (can be cut out) at bottom.
