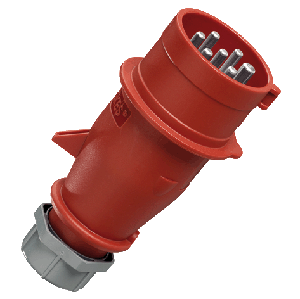

Mennekes Plug AM-TOP 744
Product Name:Plug AM-TOP?
Part No.744.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 1056
Product Name:Plug AM-TOP?
Part No.1055.
Ampere :16A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

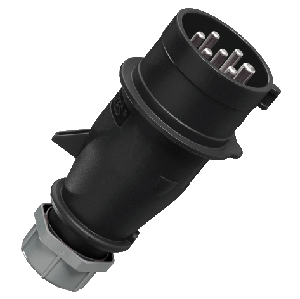

Mennekes Plug AM-TOP 1060
Product Name:Plug AM-TOP?
Part No.1060.
Ampere :32A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 3776
Product Name:Plug AM-TOP?
Part No.3776.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 2405
Product Name:Plug AM-TOP?
Part No.2405.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 3777
Product Name:Plug AM-TOP?
Part No.3777.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 2324
Product Name:Plug AM-TOP?
Part No.2324.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 3913
Product Name:Plug AM-TOP?
Part No.3913.
Ampere :16A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Plug AM-TOP 2213
Product Name:Plug AM-TOP?
Part No.2213.
Ampere :32A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

Mennekes Wall mounted inlet 2166
Product Name:Wall mounted inlet
Part No.2166.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
enclosure base with stamped recess for quick cutting out.

Mennekes Wall mounted inlet 2167
Product Name:Wall mounted inlet
Part No.2167.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
enclosure base with stamped recess for quick cutting out.

Mennekes Panel mounted inlet 749
Product Name:Panel mounted inlet
Part No.749.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
