Mennekes Panel mounted receptacle 1050
Product Name:Panel mounted receptacle
Part No.1050.
Ampere :32A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles optional fitted with auxiliary contact.

Mennekes Panel mounted receptacle 2883
Product Name:Panel mounted receptacle
Part No.2283.
Ampere :16A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz .
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.

Mennekes Panel mounted receptacle 3775
Product Name:Panel mounted receptacle
Part No.3775.
Ampere :32A.
Poles:7P.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Panel mounted receptacle 2459
Product Name:Panel mounted receptacle
Part No.2459.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier. Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.

Mennekes Panel mounted receptacle 2317
Product Name:Panel mounted receptacle
Part No.2317.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.

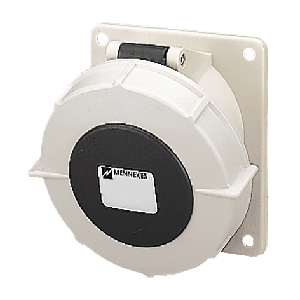

Mennekes Panel mounted receptacle 2296
Product Name:Panel mounted receptacle
Part No.2296.
Ampere :16A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.

Mennekes Panel mounted receptacle 2212
Product Name:Panel mounted receptacle
Part No.2212.
Ampere :32A.
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.

Mennekes Panel mounted receptacle 2443
Product Name:Panel mounted receptacle
Part No.2443.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
straight.

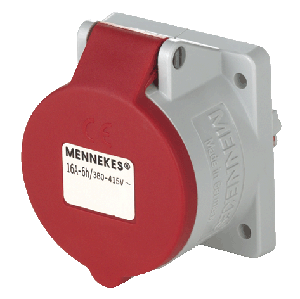

Mennekes Panel mounted receptacle 2584
Product Name:Panel mounted receptacle
Part No.2584.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
straight.

Mennekes Panel mounted receptacle 2711
Product Name:Panel mounted receptacle
Part No.2711.
Ampere:16A.
Poles:7P.
Voltage:400V.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
straight.

Mennekes Panel mounted receptacle 2988
Product Name:Panel mounted receptacle
Part No.2988.
Ampere :32A.
Poles:7P.
Voltage:400V.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
straight.

Mennekes Panel mounted receptacle 3021
Product Name:Panel mounted receptacle
Part No.3021.
Ampere :16A.
Poles:7P.
Voltage:230V.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
uniform fixing hole spacing.
suitable for through wiring.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.
