Mennekes AMAXX receptacle combination 940023
Product Name:AMAXX? receptacle combination
Part No.:940023.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
3 MCB′s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:42A.
RDF:0.65.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940026
Product Name:AMAXX? receptacle combination
Part No.:940026.
Fitted with:1 CEE 32A, 4p, 400V
2 CEE 16A, 4p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB′s 16A, 3p, C
2 MCB′s 16A, 1p+N, C.
Pre-fuse max.:63A.
InA:44A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940025
Product Name:AMAXX? receptacle combination
Part No.:940025.
Fitted with:1 CEE 63A, 5p, 400V
1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB′s 16A, 3p, C
2 MCB′s 16A, 1p+N, C.
Pre-fuse max.:63A.
InA:63A.
RDF:0.5.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 940215
Product Name:AMAXX? receptacle combination
Part No.:940215.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 swiss standard type 25, 16A, 5p, 400V
2 swiss standard type 23, 16A, 3p, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB′s 16A, 3p, C
1 MCB′s 16A, 1p, C
Pre-fuse max.:63A.
InA:45A.
RDF:0.35.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 910205
Product Name:AMAXX? receptacle combination
Part No.:910205.
Fitted with:2 french/belg. standard 16A, 230V.
Fusing:1 RCD 25A, 2p, 0.03A
2 MCB′s 16A, 1p+N, C.
Pre-fuse max.:25A.
InA:25A
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 6mm2.
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920283
Product Name:AMAXX? receptacle combination
Part No.:920283.
Fitted with:1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p+N, C
2 MCB 16A, 1p+N, C.
Pre-fuse max.:63A.
InA:27A.
RDF:0.85 .
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 920294
Product Name:AMAXX? receptacle combination
Part No.:920294.
Fitted with:1 CEE 32A, 5p, 400V
2 french/belg. standard 16A. 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
2 MCB 16A, 1p+N, C.
Pre-fuse max.:40A.
InA:32A.
RDF:0.65.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 921065
Product Name:AMAXX? receptacle combination
Part No.:921065.
Fitted with:4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
4 MCB′s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:26A.
RDF:0.8.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 921260
Product Name:AMAXX? receptacle combination
Part No.:921260.
Fitted with:1 french/belg. standard 16A, 2p+E, 230V
1 CEE 16A, 2p, 20-25V.
Fusing:1 RCD 25A, 2p, 0.03A
1 MCB 6A, 2p, C
1 MCB 16A, 1p+N, C.
1 single phase transformer 230V/24V, 160VA.
Connection/feeder cable:for 1 cable up to 3 x 6mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 921313
Product Name:AMAXX? receptacle combination
Part No.:921313.
Fitted with:1 CEE 16A, 4p, 400V
2 french/belg. standard 16A, 2p+E, 230V
Fusing:1 RCD 40A, 4p, 0.03A.
1 MCB 16A, 3p, C
2 MCB′s 16A, 1p+N, C
Pre-fuse max:63A
InA :26A.
RDF:0.8.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

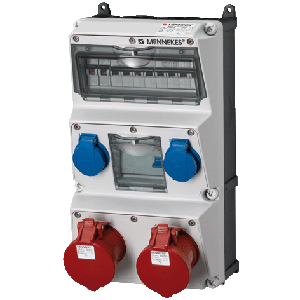

Mennekes AMAXX receptacle combination 930632
Product Name:AMAXX? receptacle combination
Part No.:930632.
Fitted with:2 CEE 32A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
2 MCB′s 32A, 3p+N, C
2 MCB′s 16A, 1p+N, C
Pre-fuse max:63A.
InA :44A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Mennekes AMAXX receptacle combination 930968
Product Name:AMAXX? receptacle combination
Part No.:930968.
Fitted with:1 CEE 32A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C.
Pre-fuse max:40A.
InA :38A.
RDF:0.7.
Connection/feeder cable:for 1 cable up to 5 x 10mm2.
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
