95966 Enclosure size 410 x 97 mm (H x W) Mennekes 95966

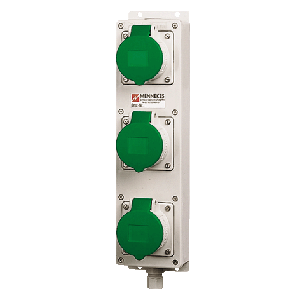

Product Name:Receptacle strip
Part No.:95966.
Fitted Mennekes 95966 with:3 SCHUKO? 16A, 230V. Mennekes 95966
Connection/feeder cable:for 1 cable up to 5 x 2.5mm2.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.
Mennekes 95966
Product Name:Receptacle strip
Part No.:95470.
Fitted with:2 CEE 16A, 5p, Mennekes 95966 400V
1 95966 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A. Mennekes 95966 95966
Connection/feeder cable:for 1 cable up to Mennekes 95966 5 x 10mm2.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.

Product Name:AMAXX? receptacle combination
Part No.:950003.
Fitted with:3 CEE 16A, 5p, 400V
4 SCHUKO? 16A, 230V.
Fusing1 RCD 63A, 4p, 0.03A
3 MCB′s 16A, 3p, C
4 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:52A.
RDF:0.65.
Connection/feeder cable:for 2 cable up to 5 x 25 mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.

Product Name:Wall mounted receptacle
Part No.9530.
Ampere :16A.
Poles:7P.
Voltage:230V .
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP67.
screw terminals.
enclosure material PBT, free of halogens, highly resistant to chemicals.
with highly heat resistant contact carrier.
nickel plated contacts.
2 external fixings.
one cable entry at top, two blind cable entries (can be cut out) at the bottom.
enclosure can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.

Product Name:AMAXX? receptacle combination
Part No.:950009.
Fitted with:2 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO? 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
2 MCB′s 32A, 3p, C
1 MCB 16A, 3p, C
4 MCB′s 16A, 1p, C.
Pre-fuse max.:63A.
InA:56A.
RDF:0.5.
Connection/feeder cable:for 2 cable up to 5 x 25 mm2.
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
ennclosure 95966 and insert madee 95966 of AMAPLAST.
fusing behind a transparent cover.
