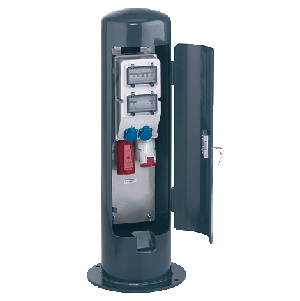

83685 Fitted with 1 CEE 32A, 5p, 400V Mennekes 83685 Power post
Product Name:Power post
Part No.:83685. Mennekes 83685
Fitted withA, Mennekes 83685 5p, 400V
1 CEE 16A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB′s 16A, 1p, B.
Pre-fuse max.:40A.
InA:40A.
RDF:0.75.
Connection/feeder cable:for 1 cable up to 5 x10mm2.
Enclosure size:1050 x 273 mm (H x ? inside).
Protection type: IP44.
from steel tube.
wall thickness 4.5 mm.
electro galvanised.
yellow chromated.
powder-coated.
colour: anthracite (RAL 7016).
hinged supply aperture.
with safety lock.
dimensions (H x ?): 1050 x 273 mm (inside).
weight: approx. 60 kg.
aperture at bottom: (H x W) 60 x 70 mm.
fixing flange: ? 390 mm.
with 4 fixing holes 15.5 mm.
for fixing to an existing fundament.
Part No.:83685. Mennekes 83685
Fitted withA, Mennekes 83685 5p, 400V
1 CEE 16A, 5p, 400V
2 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB′s 16A, 1p, B.
Pre-fuse max.:40A.
InA:40A.
RDF:0.75.
Connection/feeder cable:for 1 cable up to 5 x10mm2.
Enclosure size:1050 x 273 mm (H x ? inside).
Protection type: IP44.
from steel tube.
wall thickness 4.5 mm.
electro galvanised.
yellow chromated.
powder-coated.
colour: anthracite (RAL 7016).
hinged supply aperture.
with safety lock.
dimensions (H x ?): 1050 x 273 mm (inside).
weight: approx. 60 kg.
aperture at bottom: (H x W) 60 x 70 mm.
fixing flange: ? 390 mm.
with 4 fixing holes 15.5 mm.
for fixing to an existing fundament.
Mennekes 83685
Product Name:Stainless steel receptacle combination
Part No.:83705.
Fitted Mennekes 83685 with:1 83685 CEE 63A, 5p, 400V
2 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
3 SCHUKO? 16A, 230V.
Fusing:2 Mennekes 83685 RCD′s 63A, 4p, 0.03A
2 83685 MCB′s 63A, 3p, C
2 MCB′s 32A, 3p, C
2 MCB′s Mennekes 83685 16A, 3p, C
3 MCB′s 16A, 1p, B.
Pre-fuse max:125A.
InA :70A.
RDF:0.4.
Connection/feeder cable:for 2 cable up to 5 x 50mm2.
Enclosure size:700 x 530 x 350 mm (H x W x D).
Protection type IP44.
stainless steel enclosure (material 1.4301).
surface with a flat finish (K240), material 1.4571 on request.
protection type IP 44 with closed door.
Product Name:DELTA-BOX receptacle combination
Part No.:83699.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO? 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Protection type:IP67.
high resistance to chemicals made of AMELAN.
highly heat resistant contact carriers and nickel plates contacts.
with cable grip and installed hanging hook.
Product Name:Stainless steel receptacle combination
Part No.:83725.
Fitted with:1 CEE 16A, 5p, 400V
4 SCHUKO? 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
4 MCB′s 16A, 1p, B.
Pre-fuse max:40A.
InA :32A.
RDF:0.8.
Connection/feeder cable:for 2 cable up to 5 x 25mm2.
Enclosure size:530 x 400 x 220 mm (H x W x D).
Protection type IP44.
stainless steel enclosure (material 1.4301).
surface with a flat finish (K240), material 1.4571 on request.
protection type IP 44 with closed door.
fusing behind a transparent cover.
Product Name:DELTA-BOX receptacle combination
Part No.:83700.
Fitted with:3 SCHUKO? 16A, 230V
hinged bayonet lock lid.
Connection/feeder cable:for 1 cable up to 5 x 10 mm2.
Protection type:IP67.
high resistance to chemicals made of AMELAN.
highly heat resistant contact carriers 83685 and nickel plates contaacts.
with 83685 cable grip and installed hanging hook.
