7320 Mennekes 7320

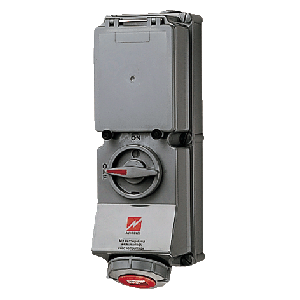

Product Name:Wall mounted receptacle
Part No.7320. Mennekes 7305
Ampere Mennekes 7305
Poles:7P.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
switched.
mechanical DUO-interlock.
highly heat resistant contact carrier.
nickel plated contacts.
6 pole switch with 2 auxiliary contacts (1 NO and 1 NC).
receptacles can be padlocked.
Mennekes 7320
Product Name:Panel mounted receptacle
Part No.737. Mennekes 7305 7305
Ampere :16A.
Poles:7P. Mennekes 7305 7305
Voltage:230V. Mennekes 7305
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
20° inclination.

Product Name:Wall mounted receptacle
Part No.734.
Ampere :16A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at the top, two blind entries (can be cut out) at the bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.

Product Name:Wall mounted receptacle
Part No.7305.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
switched.
mechanical DUO-interlock.
highly heat resistant contact carrier.
nickel plated contacts.
6 pole switch with 2 auxiliary contacts (1 NO and 1 NC).
receptacles can be padlocked.

Product Name:Wall mounted receptacle
Part No.736.
Ampere :32A.
Poles:7P.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at the top, two blind entries (can be cut out) at the bottom.
enclosure base can be turneed 7305 180°.
receptacless 7305 are designed for adding an auxiliary contact switch.
