2178 Mennekes 2178 Plug AM-TOP

Product Name:Plug AM-TOP?
Part No.2118. Mennekes 2178 2178
Ampere :32A.
Poles：3P. Mennekes 2178 2178
Voltage:>250V. Mennekes 2178
Hertz:(DC) Hz.
Earth position:8 h.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.

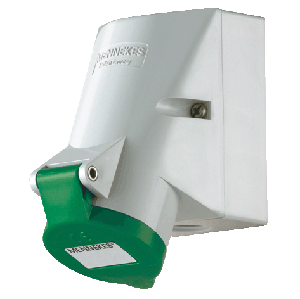

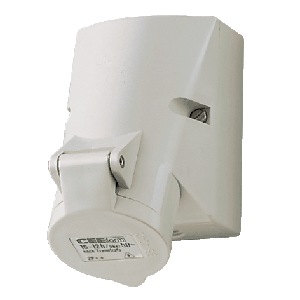

Product Name:Wall mounted inlet
Part No.:21497.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
enclosure base with stamped recess for quick cutting out.

Product Name:Connector AM-TOP?
Part No.:21021.
Ampere:16A.
Poles:4p
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP44.
screw terminals.
single part body.
with highly heat resistant contact carrier.
nickel plated contacts.
cable gland and sealing.
strain relief and protection against kinking.

Product Name:Receptacles
Part No.:21233.
Ampere:125A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with highly heat resistant contact carrier.
nickel 2178 plated contacts.<
products 2178 with pilot contact: part no. + index P.
